Terrain Spotlight: Plant Pot Bunker


Posted on Monday Feb 25, 2019 at 05:00PM in Tutorials


- by Iain Wilson

One of the things that I enjoy most about this hobby is finding random things that can be turned into new terrain. This week's article is one of just those awesome little finds - a bunker made from a grocery-store plant pot!





The base for this build was one of a set of three plastic plant pots, found at my local supermarket.



As the plastic these are made of is really hard and shiny, I started out by lightly sanding the outside. This breaks up the shiny surface, and allows glue and paint to adhere better.



I decided to avoid cutting into the pot, as I expected the plastic to be quite brittle - brittle plastic breaks easily if you're not careful when cutting it, and it was easier to just not bother. As such, I took a door from the Maelstrom's Edge terrain sprue and built a small boxwork for it using foamed PVC. I used the side of the bunker as a tracing guide to get the correct angle on the back of the box, so that it would sit nice and flush.



The door was then glued in place using an 'all plastics' superglue (a two-part glue that has a tube of superglue and a 'primer' pen that makes it stick better to plastics that don't do so well with superglue alone), along with a square of foamed PVC cut to fit neatly around the bottom of the bunker.

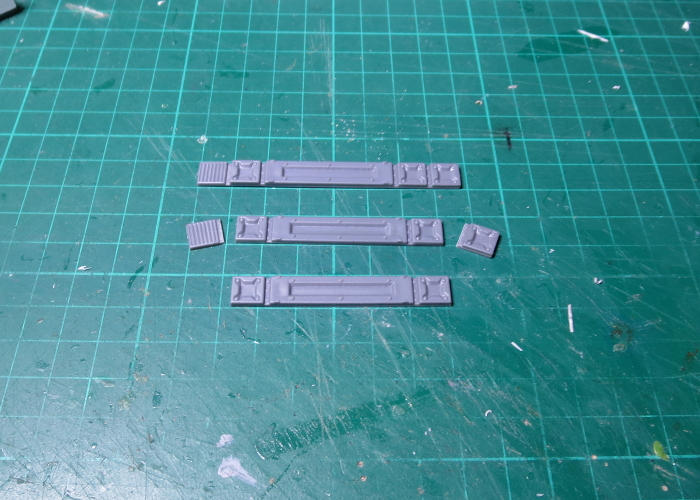

I used reinforcing struts from the terrain sprue for the bunker's vision slits, shortened up by cutting the last section off each end.

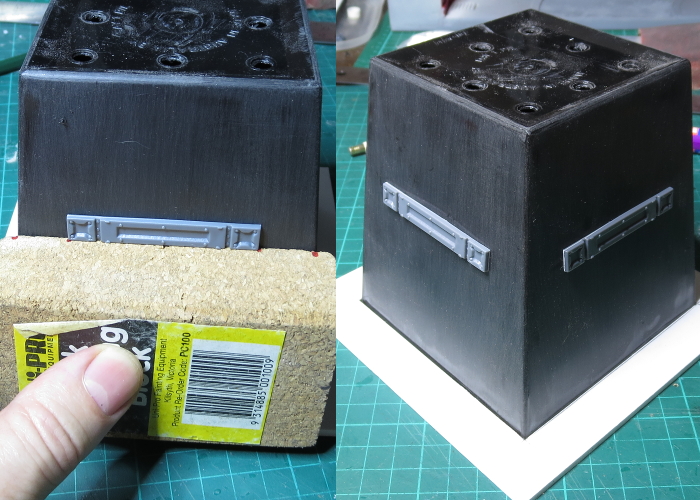

To get the slits positioned right on each side, I marked out the correct horizontal position on a cork sanding block, and used that pushed up against the wall as a height guide.



To cover over the holes in the base of the pot, I cut a square of 1mm plasticard and glued it into the recess.



To finish up, I glued the bunker to a roughly-shaped piece of masonite, and trimmed up the base square of PVC to make it a less regular shape, adding some protrusions with cast-offs of PVC to break it up even further. I also added some buttresses on the three non-door sides of the bunker, to break up line of sight around the perimeter.



I painted over the PVC on the base with some Vallejo Heavy Brown before gluing some gravel mix down over the top with PVA glue - the paint layer helps to stop stray bits of white showing through once the base is painted.



The finished bunker, ready for paint:



And with some paint on:









Build your own bunker by picking up the Maelstrom's Edge terrain sprue, along with the rest of the Maelstrom's Edge model range from the webstore here.
